2271682-2 | TE Connectivity
Terminal block, 2271682-2
Order No.: 71P6173
EAN: 4099891650506
MPN:
2271682-2
Unit Price (€ / pc.)
4.8076 € *
Available: 0 pcs.
Available in 5 Days: 300 pcs.
Leadtime: 8 Weeks **
Total Price:
4.81 € *
Price list
Quantity
Price per unit*
20 pcs.
4.8076 €
90 pcs.
4.4268 €
*incl. VAT plus shipping costs
**Subject to prior sale
Terminal block, 2271682-2, TE Connectivity

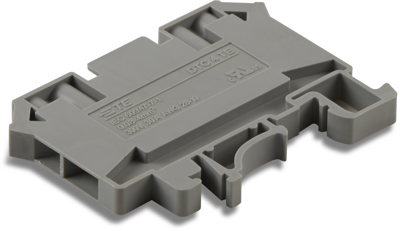

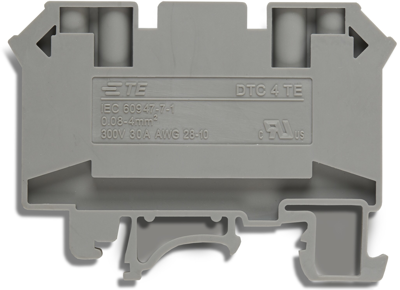

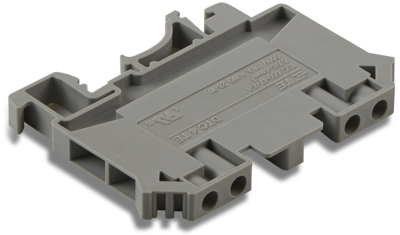

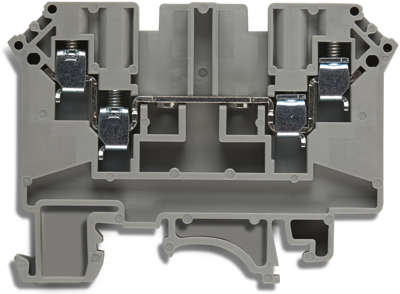

Screw terminal block, Standard, 1 position, Brass, Quick connect, DIN Rail, Steel.
Technical specifications
| Connection | quick connection | |
| Version | screw terminal block | |
| AWG cross-section | AWG 28 to 10 | |
| Rated Voltage | 300 V | |
| Rated surge voltage | 8 kV | |
| Width | 6.1 mm | |
| Colour | blue | |
| Height | 45.8 mm | |
| Length | 63.6 mm | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated current | 30 A | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
