2271683-4 | TE Connectivity
Terminal block, 2271683-4
Order No.: 71P6180
EAN: 4099891650575
MPN:
2271683-4
Unit Price (€ / pc.)
2.7727 € *
Available: 0 pcs.
Available in 5 Days: 300 pcs.
Leadtime: 8 Weeks **
Total Price:
2.77 € *
Price list
Quantity
Price per unit*
33 pcs.
2.7727 €
200 pcs.
2.5585 €
*incl. VAT plus shipping costs
**Subject to prior sale

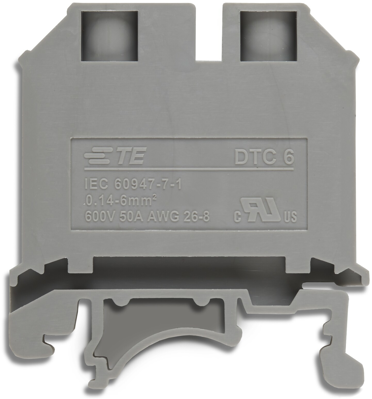

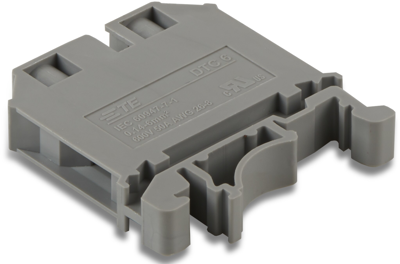

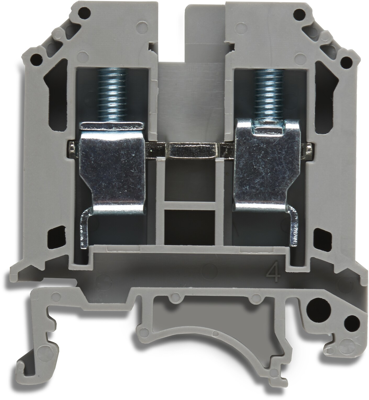

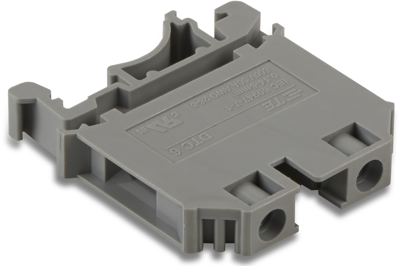

Terminal block, 2271683-4, TE Connectivity
Screw terminal block, Standard, 1 position, Copper, Quick connect, DIN Rail, Steel.
Technical specifications
| Connection | quick connection | |
| Version | screw terminal block | |
| AWG cross-section | AWG 26 to 8 | |
| Rated Voltage | 600 V | |
| Rated surge voltage | 8 kV | |
| Width | 8 mm | |
| Colour | orange | |
| Height | 45.8 mm | |
| Length | 42.8 mm | |
| Cable cross-section | 0.14-6.0 mm² | |
| Rated current | 50 A | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
