2271684-1 | TE Connectivity
Terminal block, 2271684-1
Order No.: 71P6182
EAN: 4099891650599
MPN:
2271684-1
Unit Price (€ / pc.)
4.2840 € *
Available: 0 pcs.
Available in 5 Days: 1,800 pcs.
Leadtime: 8 Weeks **
Total Price:
214.20 € *
Price list
Quantity
Price per unit*
50 pcs.
4.2840 €
150 pcs.
4.1055 €
*incl. VAT plus shipping costs
**Subject to prior sale

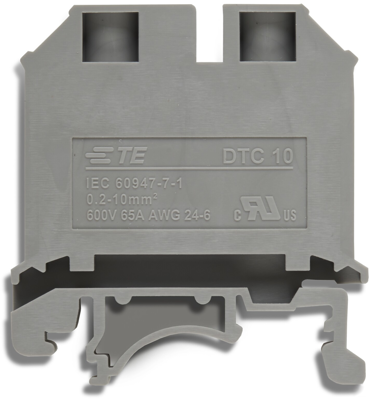

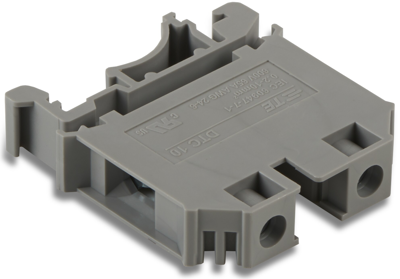

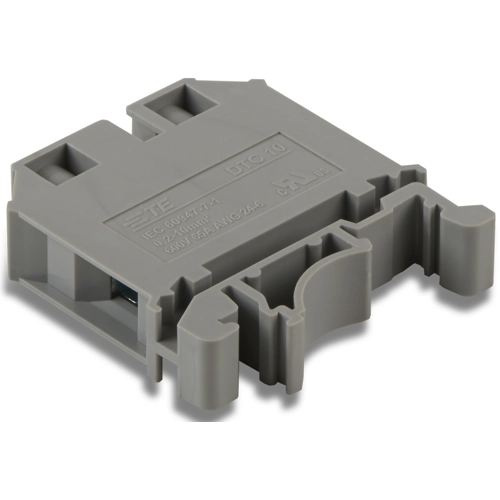

Terminal block, 2271684-1, TE Connectivity
Screw terminal block, Standard, 1 position, Copper, Quick connect, DIN Rail, Steel.
Technical specifications
| Anschluss | Schnellanschluss | |
| Ausführung | Schraubklemmleiste | |
| AWG-Leiterquerschnitt | AWG 26 bis 4 | |
| Bemessungsspannung | 600 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 10 mm | |
| Farbe | grau | |
| Höhe | 45.8 mm | |
| Länge | 42.8 mm | |
| Leiterquerschnitt | 0,2-10 mm² | |
| Nennstrom | 65 A | |
| Polzahl | 1-polig |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
