2271685-1 | TE Connectivity
Terminal block, 2271685-1
Order No.: 71P6185
EAN: 4099891650629
MPN:
2271685-1
Unit Price (€ / pc.)
6.6283 € *
Available: 0 pcs.
Available in 5 Days: 1,200 pcs.
Leadtime: 8 Weeks **
Total Price:
6.63 € *
Price list
Quantity
Price per unit*
15 pcs.
6.6283 €
65 pcs.
6.0928 €
*incl. VAT plus shipping costs
**Subject to prior sale

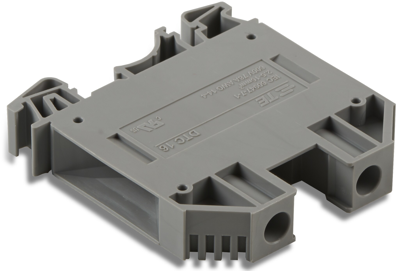

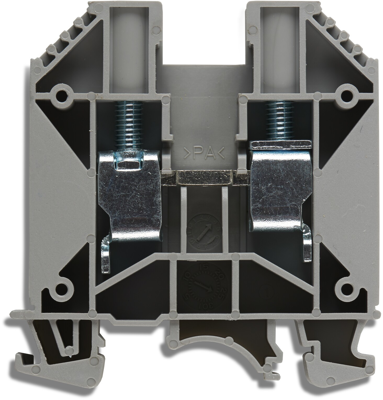

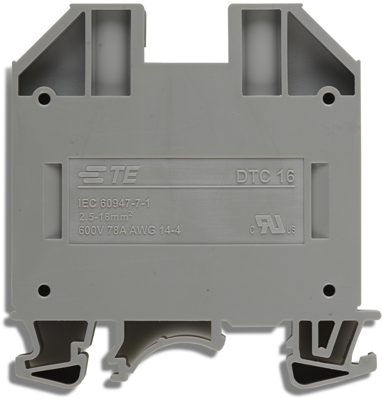

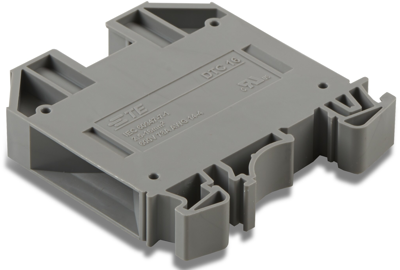

Terminal block, 2271685-1, TE Connectivity
Screw terminal block, Standard, 1 position, Copper, Quick connect, DIN Rail, Steel.
Technical specifications
| Connection | quick connection | |
| Version | screw terminal block | |
| AWG cross-section | AWG 14 to 4 | |
| Rated Voltage | 600 V | |
| Rated surge voltage | 8 kV | |
| Width | 12 mm | |
| Colour | gray | |
| Height | 62.5 mm | |
| Length | 60 mm | |
| Cable cross-section | 2.5-16 mm² | |
| Rated current | 78 A | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
