2271693-2 | TE Connectivity
Terminal block, 2271693-2
Order No.: 71P6198
EAN: 4099891650759
MPN:
2271693-2
Unit Price (€ / pc.)
4.8790 € *
Available: 0 pcs.
Available in 5 Days: 300 pcs.
Leadtime: 8 Weeks **
Total Price:
219.55 € *
Price list
Quantity
Price per unit*
45 pcs.
4.8790 €
100 pcs.
4.6767 €
*incl. VAT plus shipping costs
**Subject to prior sale

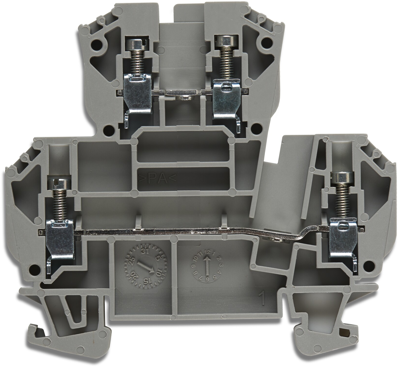

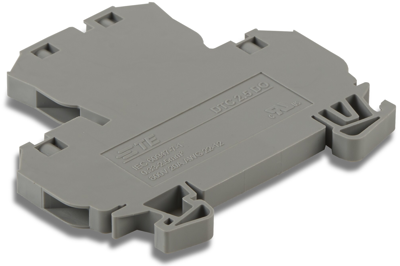

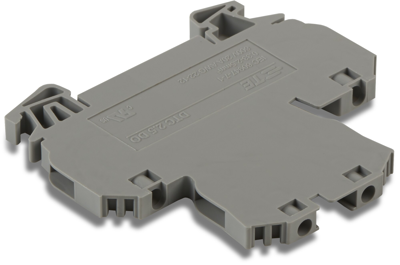

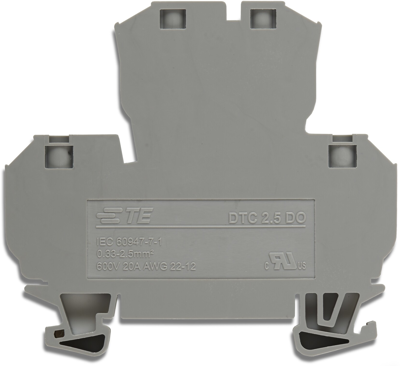

Terminal block, 2271693-2, TE Connectivity
Screw terminal block, Standard, 2 position, Copper alloy, Quick connect, DIN Rail, Steel.
Technical specifications
| Anschluss | Schnellanschluss | |
| Ausführung | Schraubklemmleiste | |
| AWG-Leiterquerschnitt | AWG 22 bis 12 | |
| Bemessungsspannung | 600 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 5 mm | |
| Farbe | blau | |
| Höhe | 62.7 mm | |
| Länge | 69 mm | |
| Leiterquerschnitt | 0,33-2,5 mm² | |
| Nennstrom | 20 A | |
| Polzahl | 2-polig |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
