2271694-5 | TE Connectivity
Terminal block, 2271694-5
Order No.: 71P6206
EAN: 4099891650834
MPN:
2271694-5
Unit Price (€ / pc.)
4.6053 € *
Available: 0 pcs.
Available in 5 Days: 300 pcs.
Leadtime: 8 Weeks **
Total Price:
4.61 € *
Price list
Quantity
Price per unit*
20 pcs.
4.6053 €
95 pcs.
4.2364 €
*incl. VAT plus shipping costs
**Subject to prior sale

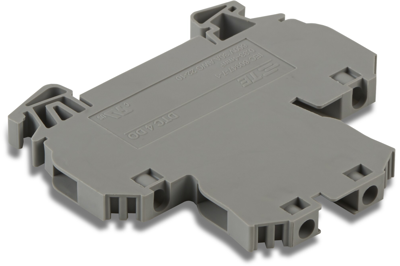

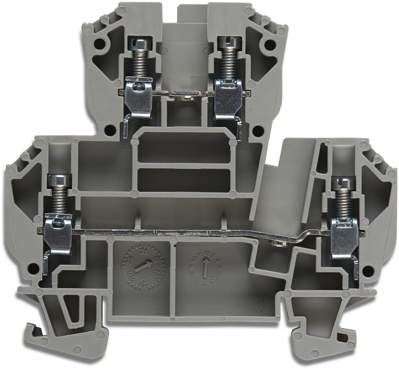

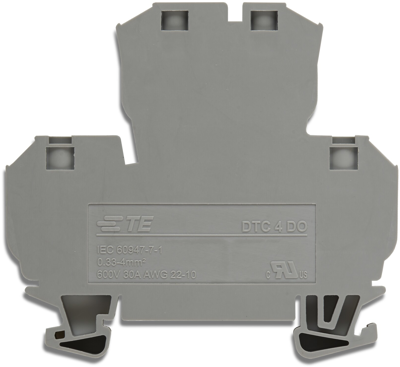

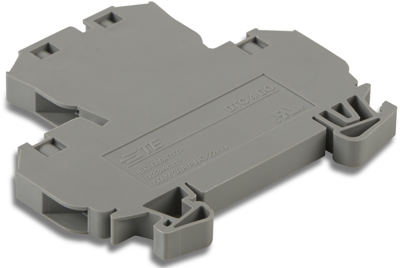

Terminal block, 2271694-5, TE Connectivity
Screw terminal block, Standard, 2 position, Copper alloy, Quick connect, DIN Rail, Steel.
Technical specifications
| Connection | quick connection | |
| Version | screw terminal block | |
| AWG cross-section | AWG 22 to 10 | |
| Rated Voltage | 600 V | |
| Rated surge voltage | 6 kV | |
| Width | 6 mm | |
| Colour | black | |
| Height | 62.7 mm | |
| Length | 69 mm | |
| Cable cross-section | 0.33-4.0 mm² | |
| Rated current | 30 A | |
| Pin number | 2 pole |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
