2271696-5 | TE Connectivity

Terminal block, 2271696-5

Order No.: 71P6216
EAN: 4099891650933
MPN:
2271696-5
TE Connectivity

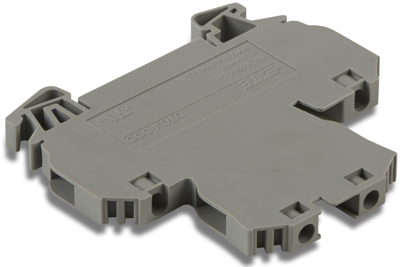

2271696-5 TE Connectivity Series Terminals Image 1

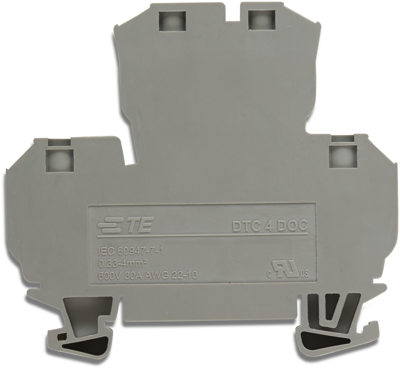

2271696-5 TE Connectivity Series Terminals Image 2

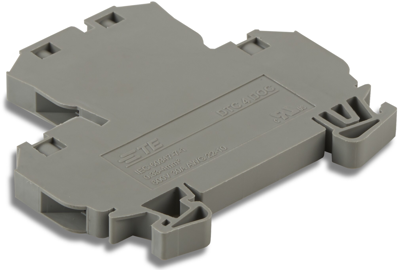

2271696-5 TE Connectivity Series Terminals Image 3

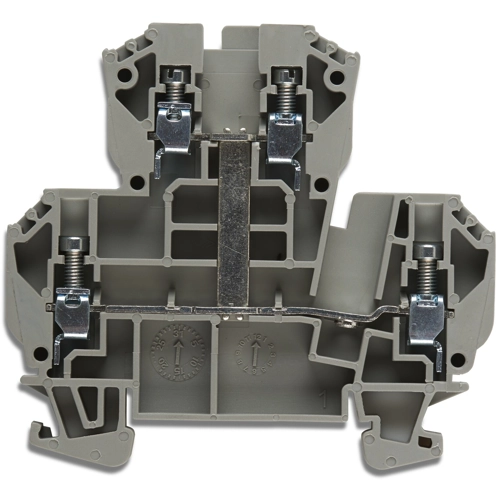

2271696-5 TE Connectivity Series Terminals Image 4
Image may differ
Unit Price (€ / pc.)
22.0388 € *
Available: 0 pcs.
Available in 5 Days: 300 pcs.
Leadtime: 8 Weeks **
Total Price:
22.04 € *
Price list
Quantity
Price per unit*
5 pcs.
22.0388 €
20 pcs.
20.3014 €
*incl. VAT plus shipping costs
**Subject to prior sale

Terminal block, 2271696-5, TE Connectivity

Screw terminal block, Standard, 1 position, Brass, Quick connect, DIN Rail, Steel.

Technical specifications
Connection quick connection
Version screw terminal block
AWG cross-section AWG 22 to 10
Rated Voltage 600 V
Rated surge voltage 6 kV
Width 6 mm
Colour black
Height 62.7 mm
Length 69 mm
Cable cross-section 0.33-4.0 mm²
Rated current 30 A
Pin number 1 pole
Logistics
Country of origin TW
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
