1-1825006-7 | TE Connectivity

DIP switche, Off-On, 10 pole, straight, 100 mA/50 VDC, 1-1825006-7

Order No.: 71P0909
EAN: 4099891653095
MPN:
1-1825006-7
Series: GDS
TE Connectivity

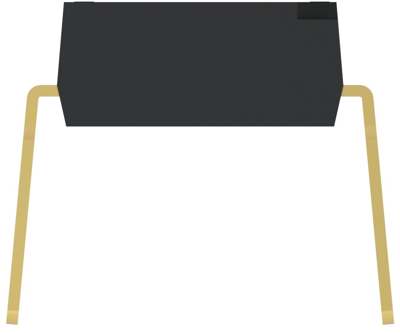

1-1825006-7 TE Connectivity Slide Switches and Coding Switches Image 1

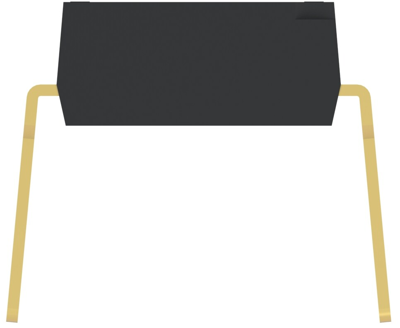

1-1825006-7 TE Connectivity Slide Switches and Coding Switches Image 2

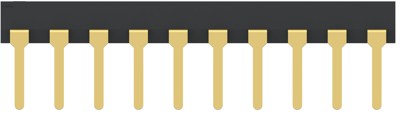

1-1825006-7 TE Connectivity Slide Switches and Coding Switches Image 3

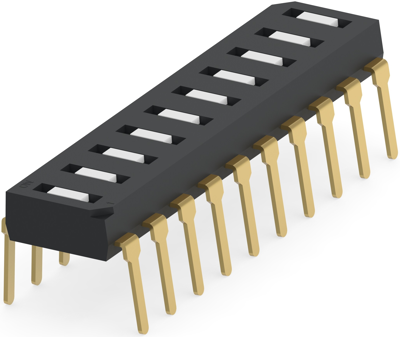

1-1825006-7 TE Connectivity Slide Switches and Coding Switches Image 4

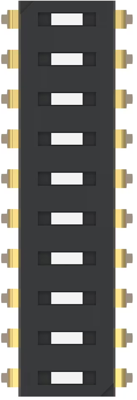

1-1825006-7 TE Connectivity Slide Switches and Coding Switches Image 5
Image may differ
Unit Price (€ / pc.)
2.5942 € *
Available: 0 pcs.
Available in 5 Days: 4,682 pcs.
Leadtime: 23 Weeks **
Total Price:
2.59 € *
Price list
Quantity
Price per unit*
45 pcs.
2.5942 €
210 pcs.
2.5347 €
*incl. VAT plus shipping costs
**Subject to prior sale

DIP Switch, 1-1825006-7, TE Connectivity

DIP Switch, Switch, Gold, Black housing, Polyphenylene sulfide (PPS), Auto-Insertable, Sealed, 10 Switch, -30-85 °C, DIP.

Features

  • Low profile
  • End stackable
  • Auto insertable
  • Gold contacts
Technical specifications
Connection PCB pin
Version DIP switche
Design straight
Actuation on top
contact surface gold-plated
Pin number 10 pole
Grid 2.54 mm
Breaking capacity 100 mA/50 VDC
Shift position Off-On
Logistics
Country of origin CN
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
