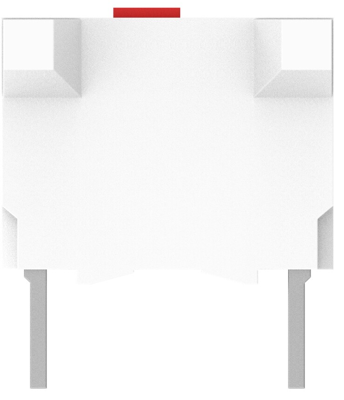

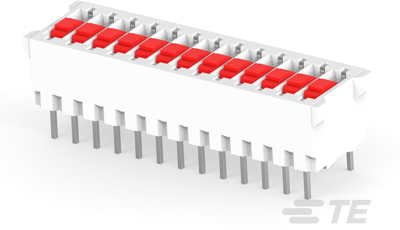

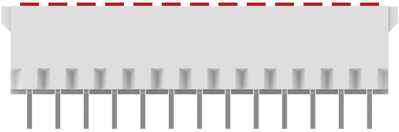

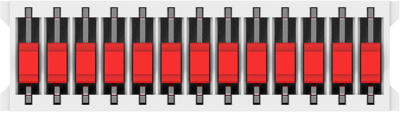

DIP Switch, 1-5161390-3, TE Connectivity
DIP & SIP Switch Product Type: Switch, Sealed DIP & SIP Switch: No, DIP & SIP Switch Type: DIP, Actuator Style: Slide, Number of Positions: 13, Number of Switches: 13, Configuration (Pole-Throw): Single Pole - Single Throw, DIP & SIP Switch Voltage Rating: 50 VDC, Actuator Color: Red, Solder Tail Contact Plating: Tin, DIP & SIP Switch Contact Mating Area Plating Material: Tin, Auto-Insertable: No, DIP & SIP Switch Contact Current Rating: .01 A, Contact Base Material: Phosphor Bronze, Termination Post Length: 3.2 mm, Mounting Angle: Vertical, DIP & SIP Switch Mounting Type: Through Hole, DIP & SIP Switch Housing Color: Natural, DIP & SIP Switch Housing Material: Nylon - GF, DIP & SIP Switch Centerline: 2.54 mm, Height: 8.5 mm, UL Flammability Rating: UL 94V-0, Packaging Quantity: 14, Comment: All switches are bottom sealed.
