1825006-7 | TE Connectivity
DIP switche, Off-On, 4 pole, straight, 100 mA/50 VDC, 1825006-7
Unit Price (€ / pc.)
2.0825 € *
Available: 0 pcs.
Available in 5 Days: 6,884 pcs.
Leadtime: 23 Weeks **
Total Price:
2.08 € *
Price list
Quantity
Price per unit*
80 pcs.
2.0825 €
280 pcs.
2.0468 €
*incl. VAT plus shipping costs
**Subject to prior sale

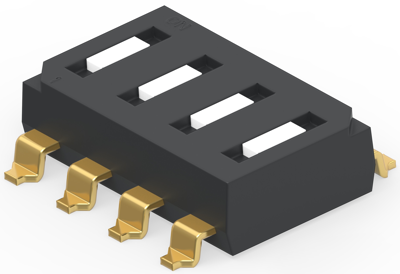

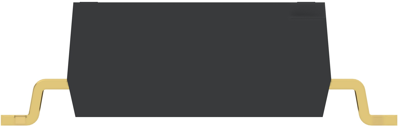

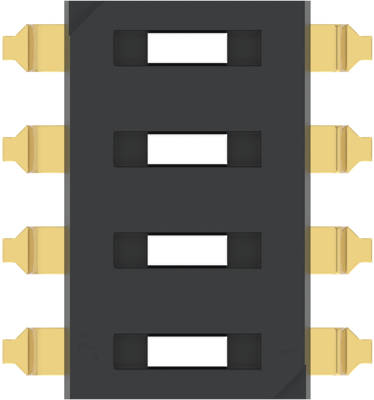

DIP Switch, 1825006-7, TE Connectivity
DIP Switch, Switch, Gold, Black housing, Polyphenylene sulfide (PPS), Auto-Insertable, Sealed, 4 Switch, -30-85 °C, DIP.
Features
- Low profile
- End stackable
- Auto insertable
- Gold contacts
Technical specifications
| Connection | gull-wing | |
| Version | DIP switche | |
| Design | straight | |
| Actuation | on top | |
| contact surface | gold-plated | |
| Pin number | 4 pole | |
| Grid | 2.54 mm | |
| Breaking capacity | 100 mA/50 VDC | |
| Shift position | Off-On |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
