1825059-6 | TE Connectivity

DIP switche, Off-On, 2 pole, straight, 1 A/5 VDC, 1825059-6

Order No.: 71P3604
EAN: 4099891653378
MPN:
1825059-6
Series: ADE
TE Connectivity

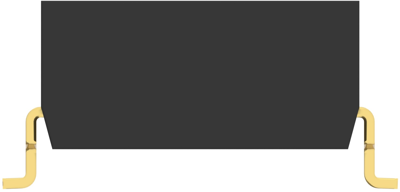

1825059-6 TE Connectivity Slide Switches and Coding Switches Image 1

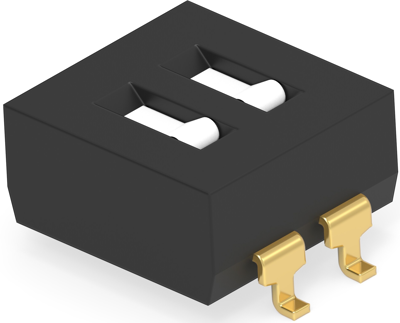

1825059-6 TE Connectivity Slide Switches and Coding Switches Image 2

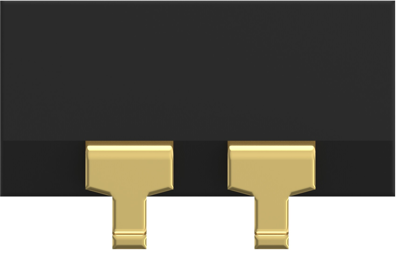

1825059-6 TE Connectivity Slide Switches and Coding Switches Image 3

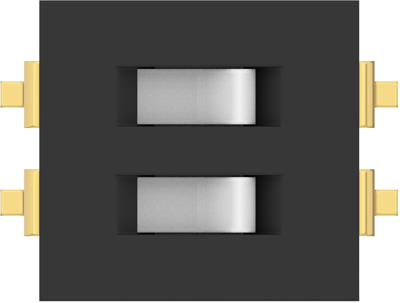

1825059-6 TE Connectivity Slide Switches and Coding Switches Image 4

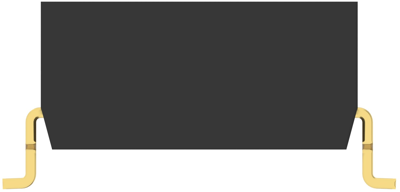

1825059-6 TE Connectivity Slide Switches and Coding Switches Image 5
Image may differ
Unit Price (€ / pc.)
1.1543 € *
Available: 0 pcs.
Available in 5 Days: 4,500 pcs.
Leadtime: 20 Weeks **
Total Price:
1.15 € *
Price list
Quantity
Price per unit*
750 pcs.
1.1543 €
1500 pcs.
1.0710 €
*incl. VAT plus shipping costs
**Subject to prior sale

DIP Switch, 1825059-6, TE Connectivity

DIP Switch, Switch, Gold flash, Black housing, Polyphenylene sulfide (PPS), Auto-Insertable, Sealed, 2 Switch, -30-85 °C

Applications

  • Flush actuator
  • High pressure contact system
  • Processable without tape seal
  • Auto insertable
Technical specifications
Connection gull-wing
Version DIP switche
Design straight
Actuation on top
contact surface gold-plated
Pin number 2 pole
Grid 2.54 mm
Breaking capacity 1 A/5 VDC
Shift position Off-On
Logistics
Country of origin MY
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
