1-2176314-0 | TE Connectivity
Resistor, thin film, SMD 0102, MicroMELF, 560 Ω, 0.3 W, ±0.1 %, 1-2176314-0
Unit Price (€ / pc.)
0.6783 € *
Available: 0 pcs.
Available in 5 Days: 10,653 pcs.
Leadtime: 18 Weeks **
Precision resistor, 1-2176314-0, TE Connectivity

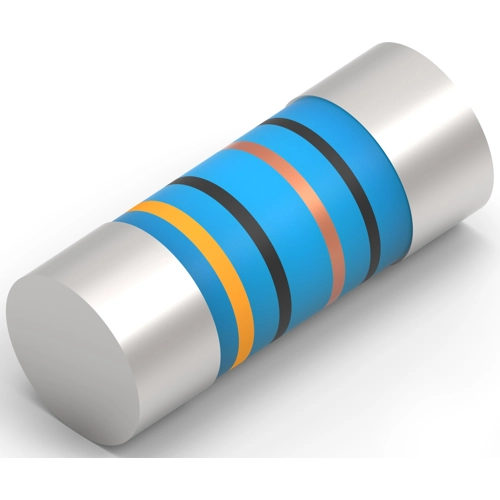

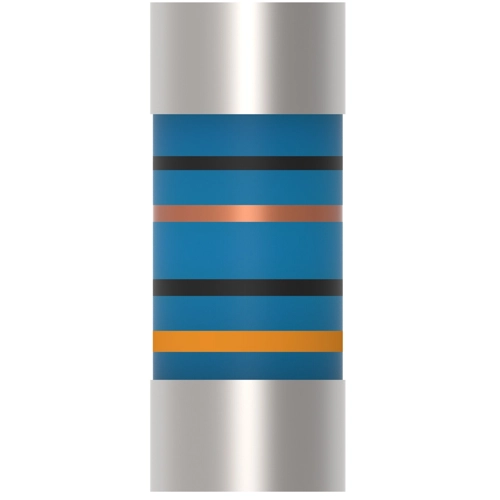

The 1-2176314-0 is a metal film precision MELF resistor with an SMD enabled structure tight tolerance and low TCR.
Features
- Thin film technology
- Excellent overall stability
- Sn termination on Ni barrier layer
- Lead-free and RoHS compliant
Applications
- Automotive
- Industrial
- Telecommunication
- Medical Equipment
- Measurement/Testing Equipment
Technical specifications
| ohmscher Widerstand | 560 Ω | |
| Bauform | SMD 0102 | |
| Durchmesser | 1.1 mm | |
| Gehäuse | Micro-MELF | |
| Länge | 2.2 mm | |
| Leistung | 0.3 W | |
| max. Temperatur | 155 °C | |
| min. Temperatur | -55 °C | |
| Toleranz | ±0,1 % | |
| Technologie | Dünnschicht | |
| Temperaturkoeffizient | ±15 ppm/°K |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85332100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
