2-2176236-5 | TE Connectivity
Resistor, thin film, SMD 0402 (1005), 8.25 kΩ, 0.0625 W, ±0.1 %, 2-2176236-5
Unit Price (€ / pc.)
0.1047 € *
Available: 0 pcs.
Available in 5 Days: 5,000 pcs.
Leadtime: 12 Weeks **

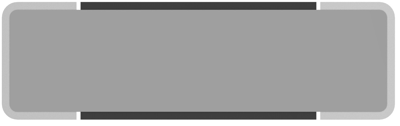

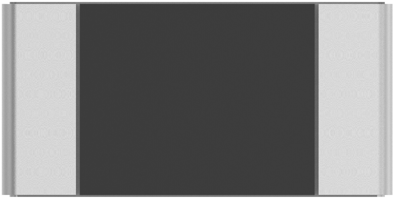

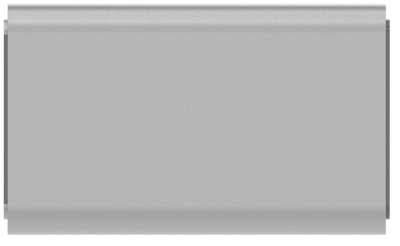

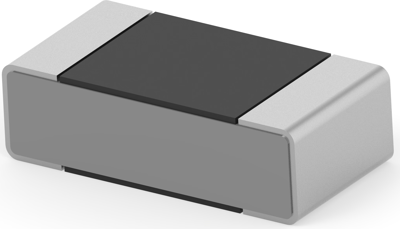

Chip resistor, 2-2176236-5, TE Connectivity
The 2-2176236-5 is a thin film chip resistor with test proven immunity to humidity, moisture, and sulfur. This product has special materials, design, and processing high sulfur applications.
Features
- Advanced thin film technology
- RoHS complian
Applications
- Automotive
- Medical
- Testing / Measurement
- Communication
Technical specifications
| ohmscher Widerstand | 8.25 kΩ | |
| Bauform | SMD 0402 (1005) | |
| Breite | 0.5 mm | |
| Höhe | 0.3 mm | |
| Länge | 1 mm | |
| Leistung | 0.0625 W | |
| max. Temperatur | 155 °C | |
| min. Temperatur | -55 °C | |
| Toleranz | ±0,1 % | |
| Technologie | Dünnschicht | |
| Temperaturkoeffizient | ±25 ppm/°K |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85332100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
