1776310-2 | TE Connectivity
Connection terminal, 2 pole, 1.25-8.0 mm², natural, screw connection, 40 A, 1776310-2
Order No.: 71P3483
EAN: 4099891743352
MPN:
1776310-2
Unit Price (€ / pc.)
6.5450 € *
Available: 0 pcs.
Available in 5 Days: 1,560 pcs.
Leadtime: 11 Weeks **
Total Price:
6.55 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5450 €
10 pcs.
6.0214 €
50 pcs.
5.4145 €
100 pcs.
4.8790 €
*incl. VAT plus shipping costs
**Subject to prior sale

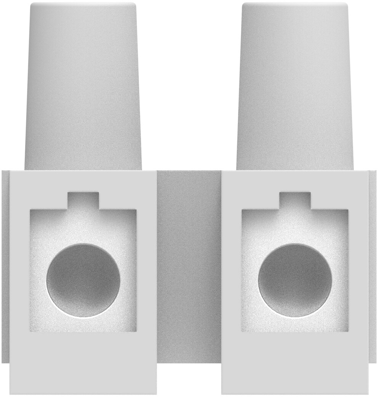

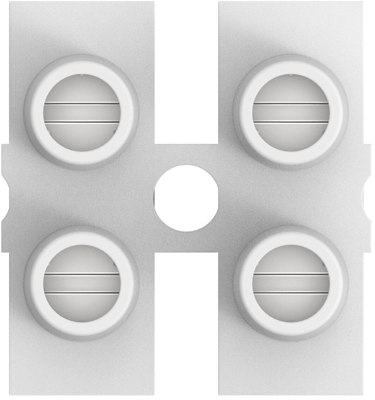

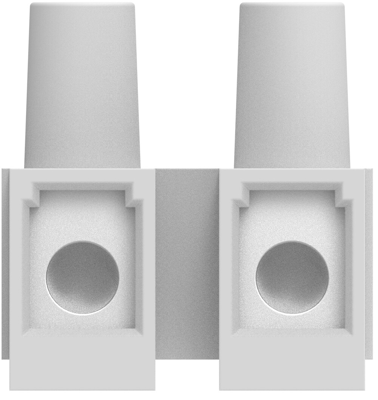

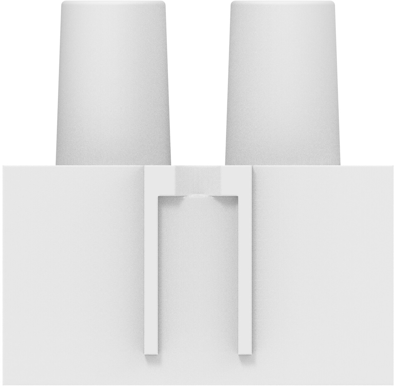

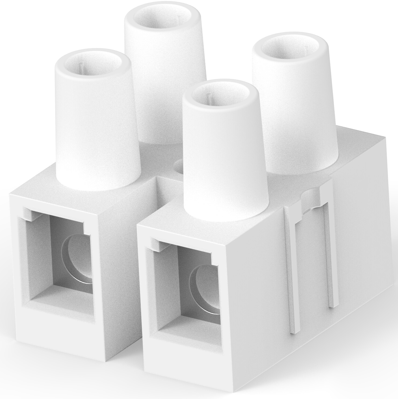

PCB Terminal, 1776310-2, TE Connectivity
The 1776310-2 is a modular design that is cut into smaller sections without altering electrical properties. This product with wire protectors virtually eliminate twisting and breakage of stranded wire during connection.
Features
- Mounting holes between every circuit
- High circuit density
Applications
- Motor Controls
- Power Supplies
- Telecom
- Valve Actuators
- Spa Controllers
- Lighting
Technical specifications
| Connection | Schraubanschluss | |
| Version | Anschlussklemme | |
| AWG cross-section | AWG 16 bis 8 | |
| Colour | natur | |
| Cable cross-section | 1,25-8,0 mm² | |
| Rated current | 40 A | |
| Pin number | 2-polig |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
