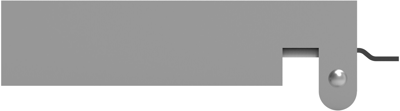

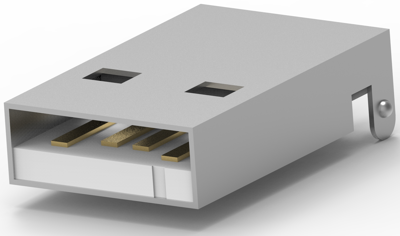

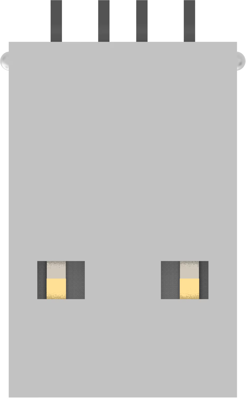

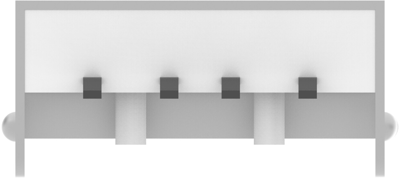

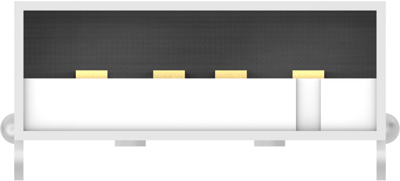

USB Connectors, 1-1734028-1, TE Connectivity
USB Connector Type: A, USB Version: 2.0, Connector & Housing Type: Plug, Connector System: Cable-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Number of Mounting Legs: 2, Number of Ports: 1, Number of Positions: 4, Connector Profile: Standard, Shell Plating Material: Nickel over Copper, Contact Current Rating (Max): 1.5 A, Contact Mating Area Plating Thickness: 0.76 µm, Termination Method to Printed Circuit Board: Surface Mount, Locating Posts: With, PCB Mount Location: Top, PCB Connector Seating: Flush, PCB Mount Retention Type: Straight Leg, Connector Mounting Type: Board Mount, Body Orientation: Right Angle, Centerline (Pitch): 2 mm, 2.5 mm, Housing Color: Natural, PCB Thickness (Recommended): 1.6 mm, Soldering Temperature (Max): 260 °C, Mating Cycles (Max): 1500, Operating Temperature Range: 0 – 50 °C, Halogen Free: No, Circuit Application: Power & Signal, UL Flammability Rating: UL 94V-HB, Packaging Method: Tape & Reel, Packaging Quantity: 500
