1775690-2 | TE Connectivity

USB-A socket, 4 pole, USB 2.0, solder connection, 1775690-2

Order No.: 37P2433
EAN: 4099889814552
MPN:
1775690-2

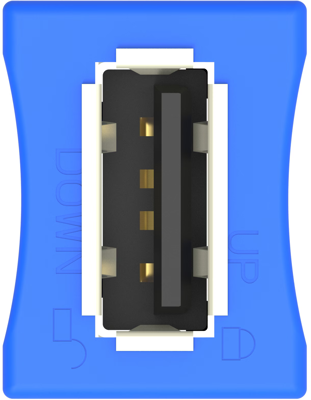

1775690-2 TE Connectivity USB Connectors, PC Connectors Image 1

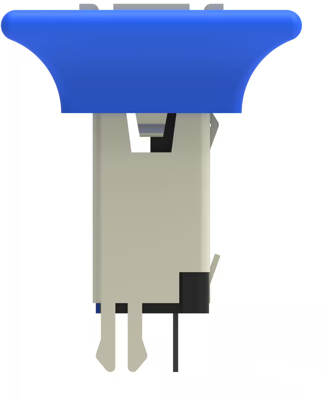

1775690-2 TE Connectivity USB Connectors, PC Connectors Image 2

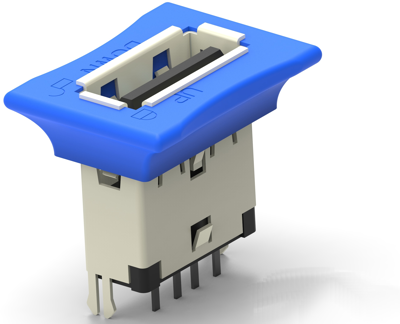

1775690-2 TE Connectivity USB Connectors, PC Connectors Image 3

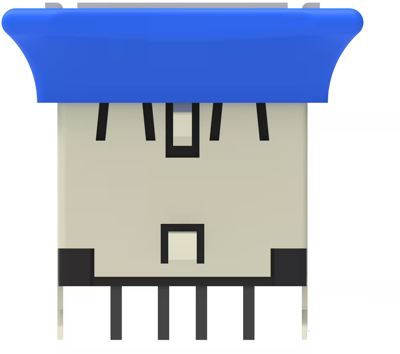

1775690-2 TE Connectivity USB Connectors, PC Connectors Image 4

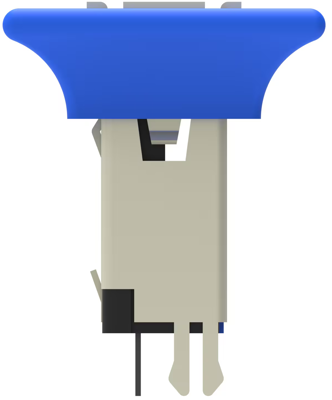

1775690-2 TE Connectivity USB Connectors, PC Connectors Image 5
Image may differ
Unit Price (€ / pc.)
4.5815 € *
Available: 0 pcs.
Available in 5 Days: 17,893 pcs.
Leadtime: 9 Weeks **
Total Price:
4.58 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5815 €
10 pcs.
4.2245 €
50 pcs.
3.7961 €
100 pcs.
3.4153 €
*incl. VAT plus shipping costs
**Subject to prior sale

USB Connector, 1775690-2, TE Connectivity

USB Connector Type: A, USB Version: 2.0, Connector & Housing Type: Receptacle, Connector System: Cable-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Number of Mounting Legs: 2, Number of Ports: 1, Number of Positions: 4, Connector Profile: Standard, Shell Plating Material: Nickel, Contact Current Rating (Max): 2.5 A, Contact Mating Area Plating Thickness: 0.76 µm, Termination Method to Printed Circuit Board: Through Hole-Solder, Lock Device Color: Blue, PCB Mount Location: Top, PCB Connector Seating: Flush, PCB Mount Retention Type: Boardlock, Panel Mount Feature Type: Flange, Body Orientation: Vertical, Centerline (Pitch): 2 mm, 2.5 mm, Housing Color: Black, PCB Thickness (Recommended): 1.6 mm, Soldering Temperature (Max): 240 °C, Mating Cycles (Max): 1500, Operating Temperature Range: -20 – 85 °C, Halogen Free: No, Circuit Application: Power & Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Box & Tray,Tray, Packaging Quantity: 100

Technical specifications
Ausführung A-Buchse
Befestigung (Rückseitig) Leiterplattenverriegelung
Kontaktanschluss Lötanschluss
Montage Leiterplattenmontage
Polzahl 4-polig
USB Standard USB 2.0
Logistics
Ursprungsland IN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
