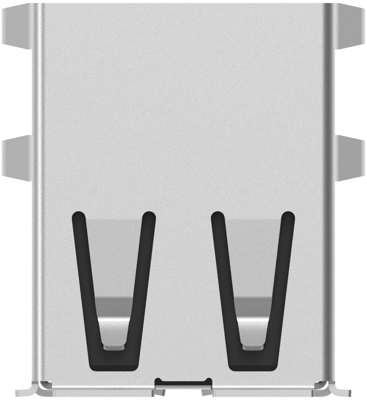

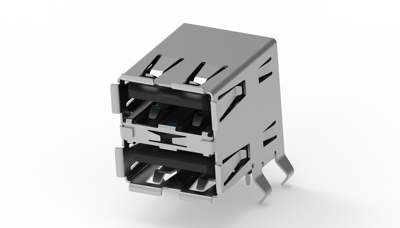

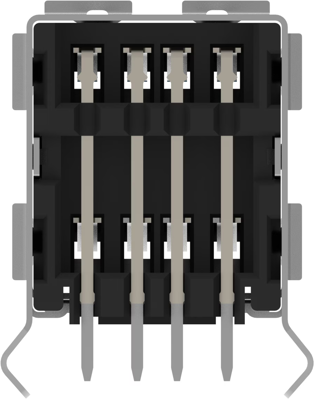

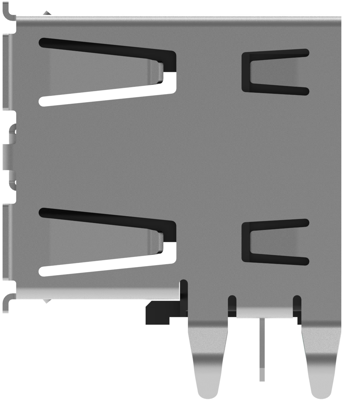

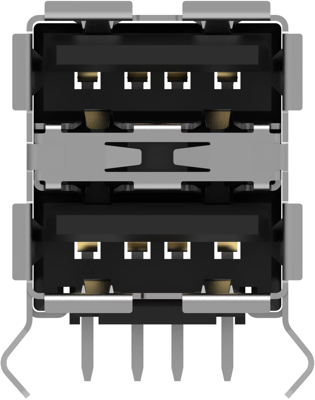

USB Connector, 1903815-1, TE Connectivity
USB Connector Type: A, USB Version: 2.0, Connector & Housing Type: Receptacle, Connector System: Wire-to-Board, Sealable: No, Number of Ports: 2, Number of Positions: 4, Shell Plating Finish: Bright, Connector Profile: Standard, Shell Plating Material: Tin over Nickel, Contact Current Rating (Max): 1 A, Contact Mating Area Plating Thickness: 0.76 µm, Termination Method to Printed Circuit Board: Through Hole-Solder, Locking Feature: Without, PCB Mount Location: Top, PCB Connector Seating: Offset, PCB Mount Retention Type: Kinked Legs, Connector Mounting Type: Board Mount, Body Orientation: Right Angle, Housing Color: Black, PCB Thickness (Recommended): 1.57 mm, Soldering Temperature (Max): 350 °C, Mating Cycles (Max): 1500, Operating Temperature Range: -55 – 85 °C, Assembly Process Feature: None, Circuit Application: Power, Signal & Data, Industry Standard: USB 2.0, Degree of Protection: IP20, Packaging Method: Box & Tray,Tray, Packaging Quantity: 70
