2129320-3 | TE Connectivity

DisplayPort socket, 20 pole, solder connection, 2129320-3

Order No.: 36P6362
EAN: 4099889814170
MPN:
2129320-3

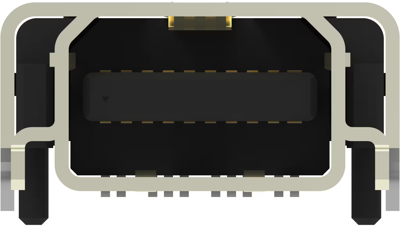

2129320-3 TE Connectivity USB Connectors, PC Connectors Image 1

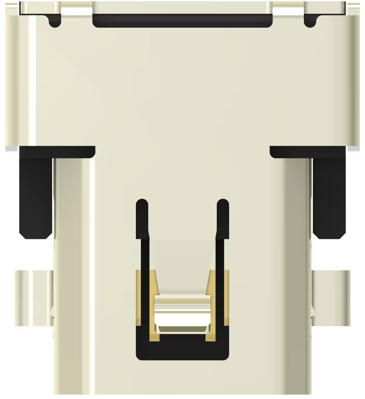

2129320-3 TE Connectivity USB Connectors, PC Connectors Image 2

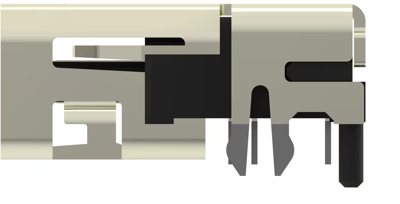

2129320-3 TE Connectivity USB Connectors, PC Connectors Image 3

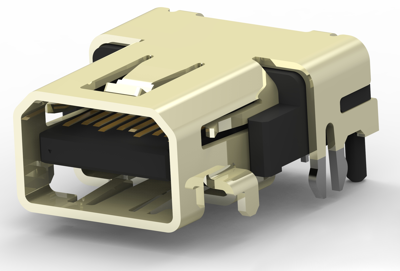

2129320-3 TE Connectivity USB Connectors, PC Connectors Image 4

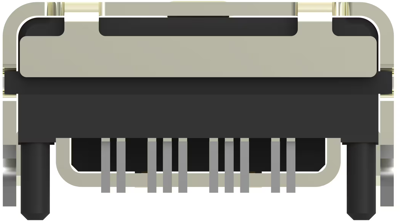

2129320-3 TE Connectivity USB Connectors, PC Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.5113 € *
Available: 0 pcs.
Available in 5 Days: 3,600 pcs.
Leadtime: 15 Weeks **
Total Price:
604.52 € *
Price list
Quantity
Price per unit*
400 pcs.
1.5113 €
800 pcs.
1.4875 €
*incl. VAT plus shipping costs
**Subject to prior sale

DisplayPort Connectors, 2129320-3, TE Connectivity

Connector System: Cable-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Connector Style: Receptacle, PCB Mount Orientation: Right Angle, Number of Positions: 20, Shell Material: Stainless Steel, Contact Base Material: Copper Alloy, Contact Mating Area Plating Material: Gold, Termination Method to Printed Circuit Board: Through Hole-Solder, PCB Mount Location: Top, Screw Flange: Without, PCB Mount Retention Type: Boardlock, Connector Mounting Type: Board Mount, Centerline (Pitch): 0.6 mm, Housing Color: Black, Tail Length: 1.4 mm, Pick & Place: Without Pick and Place Cover, Circuit Application: Signal, Flammability Rating: UL 94V-0, Packaging Method: Reel

Technical specifications
Version DisplayPort-Buchse
Attachment (rear panel) Leiterplattenverriegelung
Contact connection Lötanschluss
Assembly Leiterplattenmontage
Pin number 20-polig
Logistics
Country of origin JP
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
