1879350-6 | TE Connectivity
Resistor, 0.36 Ω, 1 W, ±5 %, 1879350-6
Unit Price (€ / pc.)
0.0405 € *
Available: 0 pcs.
Available in 5 Days: 5,000 pcs.
Leadtime: 12 Weeks **

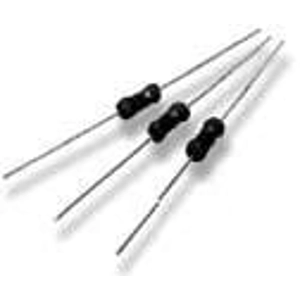

Power resistor, 1879350-6, TE Connectivity
The 1879350-6 is manufactured by depositing a homogeneous film of metal alloy onto a high-grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting wire of electrolytic copper is welded to the end-cap. This resistor is coated with a red, non-flammable lacquer, which provides electrical, mechanical and climatic protection.
Features
- Metal film technology
- High stability, reliability and uniformity characteristics
- Good performance for pulse applications
- Defined interruption behavior (fusing time)
Technical specifications
ohmic resistance | 0.36 Ω | |
Version | metal film resistor | |
Design | axial | |
diameter | 2.6 mm | |
Length | 6.8 mm | |
Power | 1 W | |
Assembly | THT | |
Tolerance | ±5 % | |
Temperature coefficient | ±300 ppm/K |
Download
Logistics
Country of origin | TW |
Customs tariff number | 85332100 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
