3-2176414-5 | TE Connectivity
Resistor, 510 Ω, 7 W, ±5 %, 3-2176414-5
Unit Price (€ / pc.)
0.7973 € *
Available: 0 pcs.
Available in 5 Days: 4,800 pcs.
Leadtime: 19 Weeks **
Total Price:
0.80 € *
Price list
Quantity
Price per unit*
160 pcs.
0.7973 €
576 pcs.
0.7854 €
*incl. VAT plus shipping costs
**Subject to prior sale

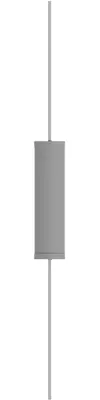

Film resistor, 3-2176414-5, TE Connectivity
The 3-2176414-5 is a power metal oxide film resistor deposited on a ceramic former. This product is protected by a flameproof coating which will withstand overload conditions without flame or mechanical damage.
Features
- High power with small size for space saving
- Excellent long term stability
- Controlled temperature capability
- Solvent Resistant Coat and Code
Technical specifications
| ohmic resistance | 510 Ω | |
| Version | metal oxide resistor | |
| Design | axial | |
| diameter | 8.5 mm | |
| Length | 32 mm | |
| Power | 7 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Tolerance | ±5 % | |
| Temperature coefficient | ±350 ppm/K |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
