4-2176416-4 | TE Connectivity
Resistor, 3.3 kΩ, 9 W, ±5 %, 4-2176416-4
Unit Price (€ / pc.)
0.9877 € *
Available: 0 pcs.
Available in 5 Days: 1,199 pcs.
Leadtime: 19 Weeks **

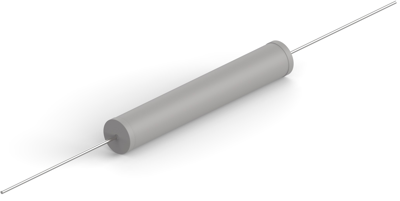

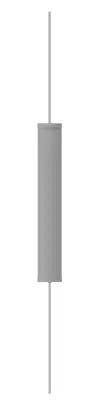

Film resistor, 4-2176416-4, TE Connectivity
The 4-2176416-4 is a power metal oxide film resistor deposited on a ceramic former. This product is protected by a flameproof coating which will withstand overload conditions without flame or mechanical damage.
Features
- High power with small size for space saving
- Excellent long term stability
- Controlled temperature capability
- Solvent Resistant Coat and Code
Technical specifications
| ohmic resistance | 3.3 kΩ | |
| Version | Metalloxid-Schichtwiderstand | |
| Design | axial | |
| diameter | 8.5 mm | |
| Length | 54 mm | |
| Power | 9 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Tolerance | ±5 % | |
| Temperature coefficient | ±350 ppm/K |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
