6-2176416-0 | TE Connectivity
Resistor, 15 kΩ, 9 W, ±5 %, 6-2176416-0
Unit Price (€ / pc.)
0.8687 € *
Available: 0 pcs.
Available in 5 Days: 1,004 pcs.
Leadtime: 19 Weeks **
Total Price:
0.87 € *
Price list
Quantity
Price per unit*
100 pcs.
0.8687 €
1000 pcs.
0.8568 €
*incl. VAT plus shipping costs
**Subject to prior sale

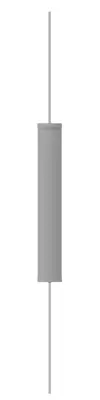

Film resistor, 6-2176416-0, TE Connectivity
The 6-2176416-0 is a power metal oxide film resistor deposited on a ceramic former. This product is protected by a flameproof coating which will withstand overload conditions without flame or mechanical damage.
Features
- High power with small size for space saving
- Excellent long term stability
- Controlled temperature capability
- Solvent Resistant Coat and Code
Technical specifications
| ohmscher Widerstand | 15 kΩ | |
| Ausführung | Metalloxid-Schichtwiderstand | |
| Bauform | axial | |
| Durchmesser | 8.5 mm | |
| Länge | 54 mm | |
| Leistung | 9 W | |
| max. Temperatur | 155 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Toleranz | ±5 % | |
| Temperaturkoeffizient | ±350 ppm/K |
Download
Logistics
| Ursprungsland | TH |
| Zolltarifnummer | 85332100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
