KSG107M250S1U5M32K | Teapo

Electrolytic capacitor, 100 µF, 250 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16 mm, KSG107M250S1U5M32K

Order No.: 11D5216
EAN: 4099879866417
MPN:
KSG107M250S1U5M32K
SG250M0100
Series: SG

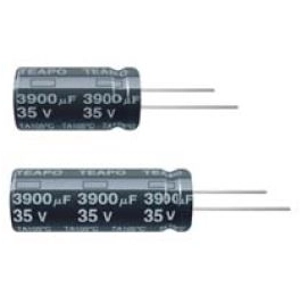

KSG107M250S1U5M32K Teapo Electrolytic Capacitors Image 1
KSG107M250S1U5M32K Teapo Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
1.4518 € *
Available: 0 pcs.
Leadtime: 30 Weeks **
Total Price:
145.18 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
1.4518 €

Electrolytic capacitor, insulated aluminum can, type SG.

Wire connections on one side, for vertical PCB mounting. Useful life 5000 h at +105 °C

Rated voltage 250 VDC, type SG 250.

Technical specifications
Ausführung Polar
Bauform radial
Durchmesser 16 mm
Kapazität 100 µF
Länge 32 mm
max. Temperatur 105 °C
min. Temperatur -40 °C
Nennspannung (DC) 250 V
Rastermaß 7.5 mm
Rippelstrom 520 mA
Toleranz ±20 %
Logistics
Ursprungsland CN
Zolltarifnummer 85322200
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
