KSG475M400S1A5H15K | Teapo

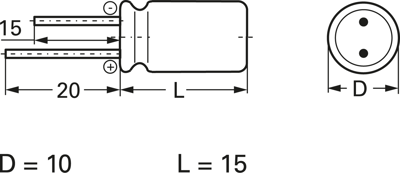

Electrolytic capacitor, 4.7 µF, 400 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, KSG475M400S1A5H15K
Unit Price (€ / pc.)
1.0591 € *
Available: 550 pcs.
Next delivery: 800 pcs. on 2025-03-10
Leadtime: On Request **
Total Price:
1.06 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0591 €
10 pcs.
0.6664 €
50 pcs.
0.4760 €
250 pcs.
0.3927 €
1000 pcs.
0.3451 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type SG.
Wire connections on one side, for vertical PCB mounting. Useful life 5000 h at +105 °C
Rated voltage 400 VDC, type SG 400.
Technical specifications
| Version | polar | |
| Design | radial | |
| diameter | 10 mm | |
| Capacity | 4.7 µF | |
| Length | 15 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 400 V | |
| Grid | 5 mm | |
| Ripple current | 60 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
