KSG476M250S1A5L25K | Teapo

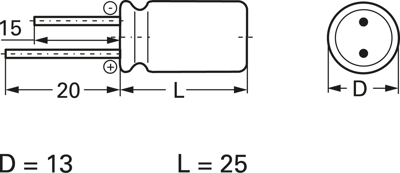

Electrolytic capacitor, 47 µF, 250 V (DC), ±20 %, radial, pitch 5 mm, Ø 13 mm, KSG476M250S1A5L25K
Unit Price (€ / pc.)
1.5232 € *
Available: 0 pcs.
Leadtime: On Request **

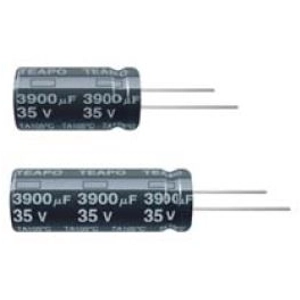

Electrolytic capacitor, insulated aluminum can, type SG.
Wire connections on one side, for vertical PCB mounting. Useful life 5000 h at +105 °C
Rated voltage 250 VDC, type SG 250.
Technical specifications
| Version | polar | |
| Design | radial | |
| diameter | 13 mm | |
| Capacity | 47 µF | |
| Length | 25 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 250 V | |
| Grid | 5 mm | |
| Ripple current | 270 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
