KSH106M063S1A5C11K | Teapo

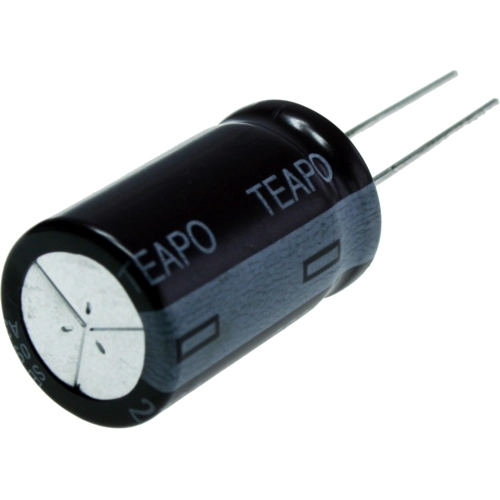

Electrolytic capacitor, 10 µF, 63 V (DC), ±20 %, radial, pitch 2 mm, Ø 5 mm, KSH106M063S1A5C11K
Unit Price (€ / pc.)
0.2106 € *
Available: 2,288 pcs.
Leadtime: On Request **
Total Price:
0.21 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2106 €
10 pcs.
0.1833 €
100 pcs.
0.1309 €
300 pcs.
0.0928 €
1000 pcs.
0.0774 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, KSH106M063S1A5C11K, TEAPO
Lead-Aluminum electrolytic capacitor
Features
- High CV product
- High rated voltage
- RoHS-compatible
- Long useful life
Technical specifications
| Version | polar | |
| Design | radial | |
| diameter | 5 mm | |
| Capacity | 10 µF | |
| Length | 11 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 63 V | |
| Grid | 2 mm | |
| Ripple current | 50 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
