KSH226M350S1G5L20K | Teapo

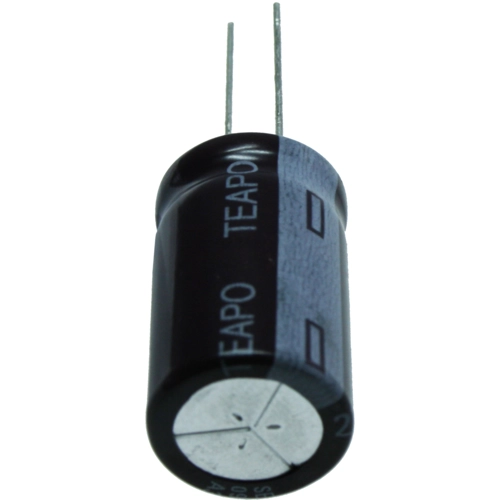

Electrolytic capacitor, 22 µF, 350 V (DC), ±20 %, radial, pitch 5 mm, Ø 13 mm, KSH226M350S1G5L20K
Unit Price (€ / pc.)
1.4637 € *
Available: 447 pcs.
Leadtime: On Request **
Total Price:
1.46 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4637 €
10 pcs.
0.9044 €
50 pcs.
0.8092 €
250 pcs.
0.6902 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, KSH226M350S1G5L20K, TEAPO
Lead-Aluminum electrolytic capacitor
Features
- High CV product
- High rated voltage
- RoHS-compatible
- Long useful life
Technical specifications
| Version | polar | |
| Design | radial | |
| diameter | 13 mm | |
| Capacity | 22 µF | |
| Length | 20 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -25 °C | |
| Rated voltage (DC) | 350 V | |
| Grid | 5 mm | |
| Ripple current | 150 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
