KSS107M6R3S1A5E07K | Teapo

Electrolytic capacitor, 100 µF, 6.3 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.3 mm, KSS107M6R3S1A5E07K

Order No.: 11D4806
EAN: 4099879866004
MPN:
KSS107M6R3S1A5E07K
SS006M0100ST
Series: SS
Teapo

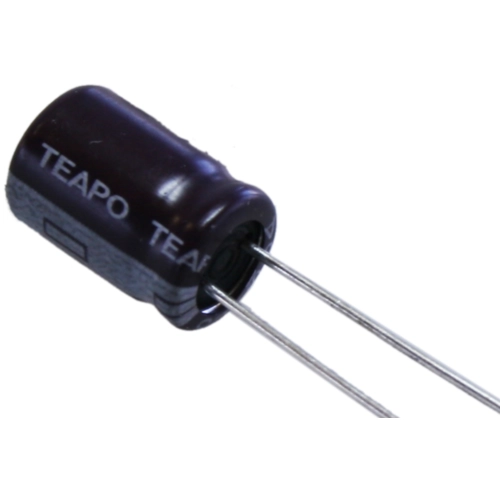

KSS107M6R3S1A5E07K Teapo Electrolytic Capacitors Image 1
KSS107M6R3S1A5E07K Teapo Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.2071 € *
Available: 2,214 pcs.
Leadtime: On Request **
Total Price:
0.21 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2071 €
10 pcs.
0.1297 €
50 pcs.
0.0928 €
250 pcs.
0.0774 €
1000 pcs.
0.0666 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type SS.

With radial connections

Rated voltage 6.3 VDC, type SS 06.

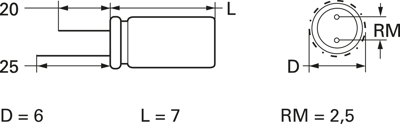

Technical specifications
Version polar
Design radial
diameter 6.3 mm
Capacity 100 µF
Length 7 mm
max. operating temperature 105 °C
min. operating temperature -40 °C
Rated voltage (DC) 6.3 V
Grid 2.5 mm
Ripple current 90 mA
Tolerance ±20 %
Logistics
Country of origin CN
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
