KSY107M035S1A5E11K | Teapo

Electrolytic capacitor, 100 µF, 35 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.3 mm, KSY107M035S1A5E11K

Order No.: 11D5170
EAN: 4099879866318
MPN:
KSY107M035S1A5E11K
SY100UF/35V
Series: SY
Teapo
KSY107M035S1A5E11K Teapo Electrolytic Capacitors Image 1
KSY107M035S1A5E11K Teapo Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.2999 € *
Available: 1,737 pcs.
Leadtime: On Request **
Total Price:
0.30 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2999 €
10 pcs.
0.1868 €
50 pcs.
0.1345 €
250 pcs.
0.1131 €
1000 pcs.
0.0964 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor in aluminum can, type Teapo SY.

With radial connections and low ESR

Rated voltage 35 VDC.

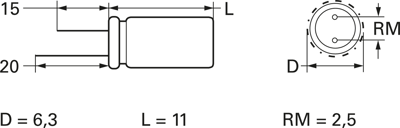

Technical specifications
Version polar
Design radial
diameter 6.3 mm
Capacity 100 µF
Length 11 mm
max. operating temperature 105 °C
min. operating temperature -40 °C
Rated voltage (DC) 35 V
Grid 2.5 mm
Ripple current 580 mA
Tolerance ±20 %
Logistics
Country of origin TW
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
