SLG228M050S1A5Q30K | Teapo
Electrolytic capacitor, 2200 µF, 50 V (DC), ±20 %, radial, pitch 10 mm, Ø 22 mm, SLG228M050S1A5Q30K
Unit Price (€ / pc.)
3.3439 € *
Available: 1,131 pcs.
Leadtime: On Request **
Total Price:
3.34 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3439 €
10 pcs.
2.7727 €
100 pcs.
2.3919 €
250 pcs.
2.1658 €
1000 pcs.
1.9873 €
*incl. VAT plus shipping costs
**Subject to prior sale

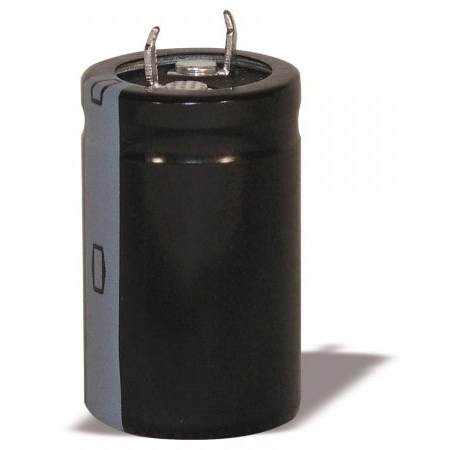

Electrolytic capacitor in aluminum can, type LG.
With insulated package and snap-in connection
Rated voltage 50 VDC, type LG 50.
Technical specifications
| Connection | snap-in | |
| Version | polar | |
| Design | radial | |
| diameter | 22 mm | |
| Capacity | 2200 µF | |
| Length | 30 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 50 V | |
| Grid | 10 mm | |
| Ripple current | 1.55 A | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
