TK53B.05.1,30.C.50.A | Tekon

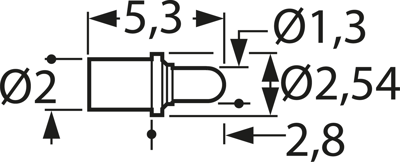

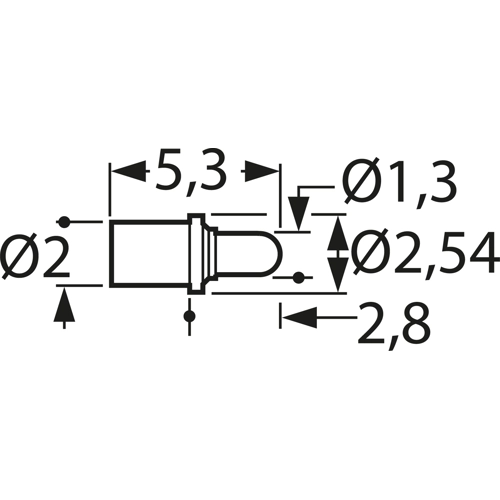

Charge and battery contact, round head, Ø 2 mm, pitch 2.54 mm, L 5.3 mm, TK53B.05.1,30.C.50.A
Unit Price (€ / pc.)
3.3677 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
3.37 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3677 €
25 pcs.
3.1059 €
50 pcs.
2.9036 €
100 pcs.
2.7251 €
500 pcs.
2.5466 €
*incl. VAT plus shipping costs
**Subject to prior sale
Receptacle: gold-plated brass
Spring: silver-plated steel
Tip: gold-plated steel CuBe
Rated current: 1.5 A
Max. Spring force: 1.2 mm
Working stroke: 1.0 mm
Contact resistance: max. 20 mohm
Table index: type, spring force
Technical attributes (type, spring force): TK0053B.05.1.30.C.50.A, 50 cN
Technical specifications
| Durchmesser | 2 mm | |
| Kopfform | Rundkopf | |
| Länge | 5.3 mm | |
| Material | Kupferberyllium | |
| Nennstrom | 1.5 A | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90319000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
