100022942 | Telegärtner

Junction box, 2xRJ45, Cat 5e, white, for AMJ45, 100022942

Order No.: 73F1109
EAN: 4018359262266
MPN:
100022942
J00020A0393
Series: DataVoice
Telegärtner

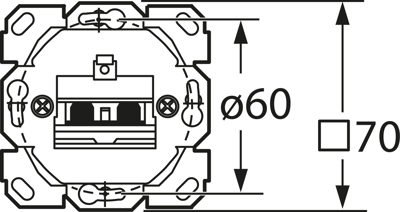

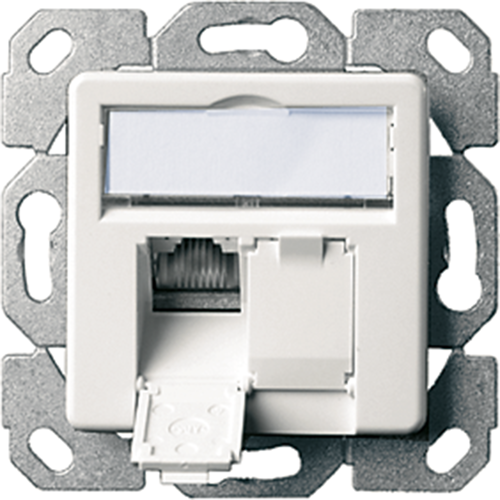

100022942 Telegärtner Accessories for Network Connectors Image 1

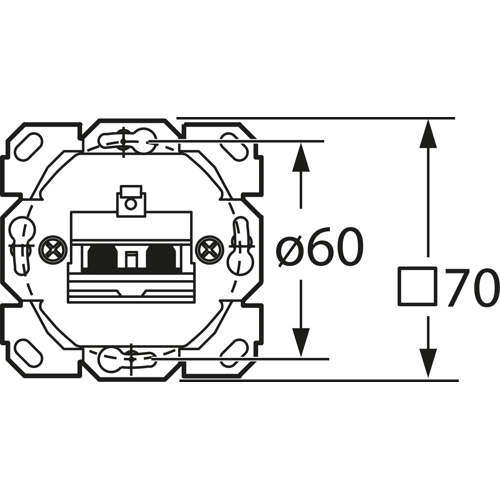

100022942 Telegärtner Accessories for Network Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.8988 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
14.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
14.8988 €

Shielded data outlets series AMJ45, type Telegärtner J00020.

Two fully shielded RJ45 jacks, cable entry from all directions in 8 x 45° steps, horizontal and vertical installation option; Dielectric strength (contact-contact): min. 1000 VDC. Current rating (at +50 °C): 1.0 A. Contact resistance: max. 20 mohm. Insulation resistance: min. 500 Mohm. Ambient temperatures: –40 to +70 °C.

For Cat. 6/Class E applications, 2 data connections, type J00020.

Type: J00020A0393, alpine-white

Technical specifications
Connection LSA
Colour white
Suitable for AMJ45
Category Cat 5e
Assembly Flush mounting
Accessory Type junction box
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
