100022944 | Telegärtner

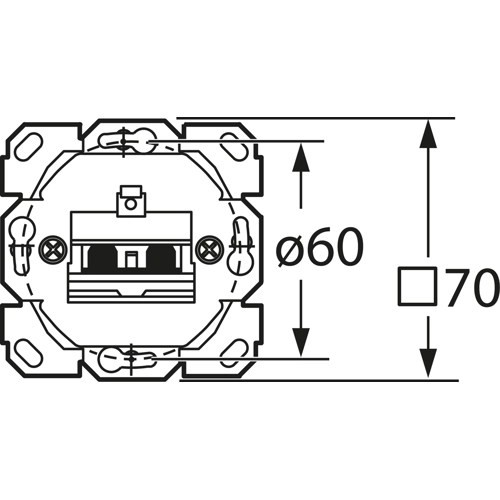

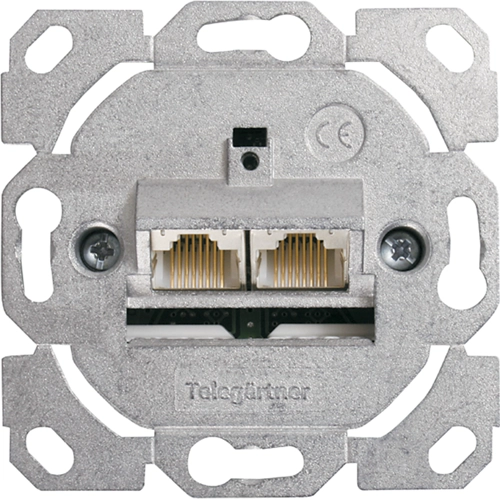

Junction box, 2xRJ45, Cat 6A, white, for AMJ45, 100022944
Unit Price (€ / pc.)
40.5790 € *
Available: 2 pcs.
Leadtime: On Request **
Total Price:
40.58 € *
Price list
Quantity
Price per unit*
1 pcs.
40.5790 €
10 pcs.
38.5560 €
25 pcs.
36.2355 €
50 pcs.
34.0578 €
*incl. VAT plus shipping costs
**Subject to prior sale
Shielded data outlets series AMJ45, type Telegärtner J00020.
Two fully shielded RJ45 jacks, cable entry from all directions in 8 x 45° steps, horizontal and vertical installation option; Dielectric strength (contact-contact): min. 1000 VDC. Current rating (at +50 °C): 1.0 A. Contact resistance: max. 20 mohm. Insulation resistance: min. 500 Mohm. Ambient temperatures: –40 to +70 °C.
For Cat. 6/Class E applications, 2 data connections, type J00020.
Type: J00020A0395, no center plate
Technical specifications
| Connection | screw connection | |
| Colour | white | |
| Suitable for | AMJ45 | |
| Category | Cat 6A | |
| Assembly | Flush mounting | |
| Accessory Type | junction box |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
