100022956 | Telegärtner

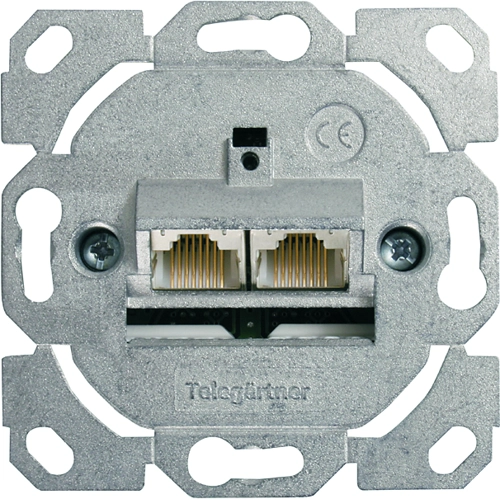

Junction box, 2xRJ45, Cat 6A, white, for AMJ45, 100022956
Unit Price (€ / pc.)
18.3379 € *
Available: 0 pcs.
Leadtime: On Request **
Shielded data outlets series AMJ45, type Telegärtner J00020.
Two fully shielded RJ45 jacks, cable entry from all directions in 8 x 45° steps, horizontal and vertical installation option; Dielectric strength (contact-contact): min. 1000 VDC. Current rating (at +50 °C): 1.0 A. Contact resistance: max. 20 mohm. Insulation resistance: min. 500 Mohm. Ambient temperatures: –40 to +70 °C.
Cat. 6A applications, for 2 data connection, type J00020.
Suitable for Cat. 6 transmission functions to ISO/IEC 11801, release 2; Short name: AMJ45 8/8 K Up/50 Cat. 6 A.
Technical attributes (type, color, installation ): J00020A0502, no center plate, cable duct
Technical specifications
| Connection | screw connection | |
| Colour | white | |
| Suitable for | AMJ45 | |
| Category | Cat 6A | |
| Assembly | Flush mounting | |
| Accessory Type | junction box |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
