100022997 | Telegärtner

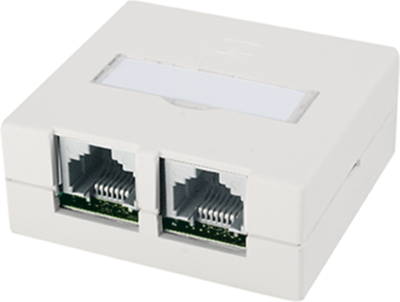

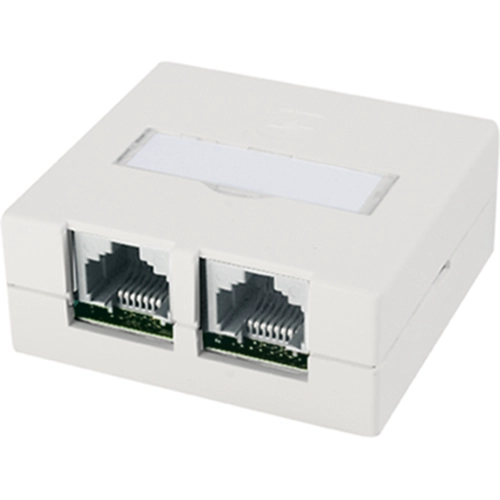

Junction box, 2xRJ45, Cat 5e, white, 100022997
Unit Price (€ / pc.)
44.5060 € *
Available: 48 pcs.
Leadtime: On Request **
Total Price:
44.51 € *
Price list
Quantity
Price per unit*
1 pcs.
44.5060 €
10 pcs.
42.2807 €
25 pcs.
39.7460 €
50 pcs.
37.3541 €
*incl. VAT plus shipping costs
**Subject to prior sale
Shielded data outlets series VAD 8/8 Ap, type Telegärtner J00023A.
CAT 6/Class E transmission specs to IEC 11801/DIN EN 50173-1, suitable for Gigabit Ethernet, Power over Ethernet, with two RJ45 sockets facing downward, cable entry on top, shielded, plastic housing for wall mounting; Dielectric strength contact/contact: min. 1000 VDC. Current rating at 50 °C: 1.0 A. Contact resistance: max. 20 mohm. Insulation resistance: min. 500 Mohm. Ambient temperatures: –40 to +70 °C. Dimensions: 80 x 65 x 42.3 mm.
Type: J00023A0056, pure white
Technical specifications
| Connection | LSA | |
| Colour | white | |
| Category | Cat 5e | |
| Assembly | Surface installation | |
| Accessory Type | junction box |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
