100023846 | Telegärtner
Telegärtner J01016R0005
Unit Price (€ / pc.)
90.7018 € *
Available: 0 pcs.
Leadtime: On Request **

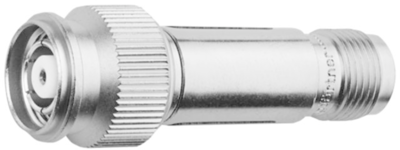

R-TNC attenuator, 100023846, Telegärtner
R-TNC connector is supplied with a threaded coupling, is vibration resistant and can be used up to 6 GHz frequencies. The impedance is controlled at 50 Ω. Reverse-polarised connectors are mainly used in WLAN applications.
Technical specifications
| Damping | 6 dB | |
| Impedance | 50 Ω | |
| Power | 2 W | |
| max. frequency | 6 GHz | |
| Connector | R-TNC plug / R-TNC socket |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
