100023584 | Telegärtner

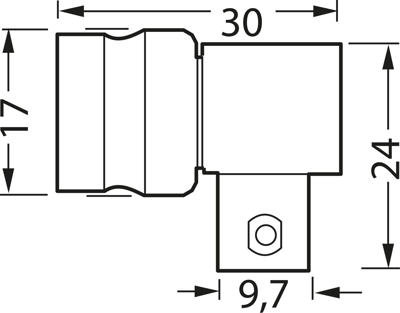

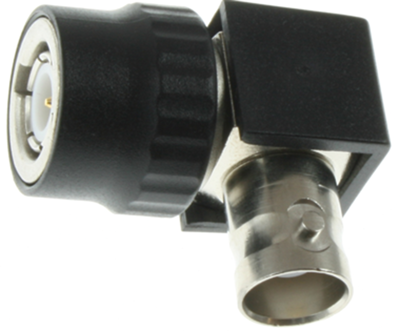

Coaxial adapter, 50 Ω, BNC plug to BNC socket, angled, 100023584
Order No.: 78F289
EAN: 4018359105822
MPN:
100023584
J01004A0005
Unit Price (€ / pc.)
9.1273 € *
Available: 0 pcs.
Leadtime: On Request **
Coaxial adapter, J01004A0005, Telegärtner
BNC-Plug to BNC-Jack
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
FEATURES
- BNC (m)/BNC (f)
- Max. Frequency 4 GHz
Technical Data
- Design: angled
- Impedance: 50 Ω
Technical specifications
| Design | angled | |
| Impedance | 50 Ω | |
| Connector (exit) | BNC socket | |
| Connector | BNC plug |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
