100023599 | Telegärtner

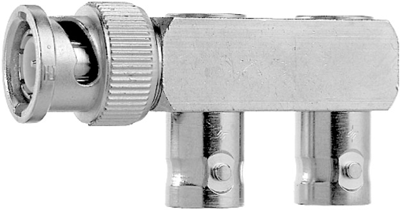

Coaxial adapter, 75 Ω, BNC plug to 2 x BNC socket, T-shape, 100023599
Unit Price (€ / pc.)
42.8043 € *
Available: 1 pcs.
Leadtime: 1 Week **
Total Price:
42.80 € *
Price list
Quantity
Price per unit*
1 pcs.
42.8043 €
10 pcs.
40.6623 €
25 pcs.
38.2228 €
50 pcs.
35.9261 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coaxial adapter, J01005A0003, Telegärtner
2x BNC-Jack to BNC-Plug
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
FEATURES
- BNC (m-f-f)
- Mating life ≥ 500
- Max. Frequency 4 GHz
Technical Data
- Design: T-Shape
- Impedance: 75 Ω
Technical specifications
| Bauform | T-Form | |
| Impedanz | 75 Ω | |
| Steckverbinder (Ausgang) | 2 x BNC-Buchse | |
| Steckverbinder | BNC-Stecker |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
