100023600 | Telegärtner

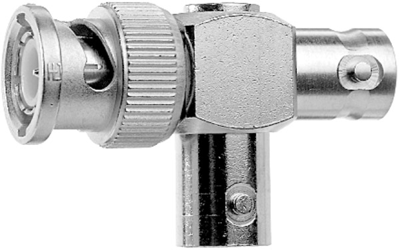

Coaxial adapter, 75 Ω, BNC plug to 2 x BNC socket, T-shape, 100023600
Unit Price (€ / pc.)
13.6493 € *
Available: 0 pcs.
Leadtime: 1 Week **
Coaxial adapter, J01005A0004, Telegärtner
2x BNC-Jack to BNC-Plug
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
FEATURES
- BNC (m-f-f)
- Mating life ≥ 500
- Max. Frequency 4 GHz

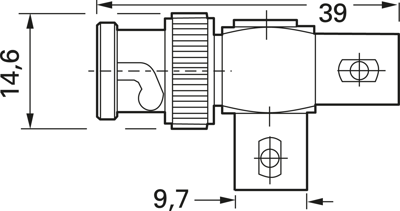

Technical Data
- Design: T-Shape
- Impedance: 75 Ω
Technical specifications
| Design | T-shape | |
| Impedance | 75 Ω | |
| Connector (exit) | 2 x BNC socket | |
| Connector | BNC plug |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
