100023601 | Telegärtner

Coaxial adapter, 75 Ω, BNC plug to 2 x BNC socket, Y-shape, 100023601

Order No.: 78F2928
EAN: 4018359106119
MPN:
100023601
J01005A0005
Series: COAX

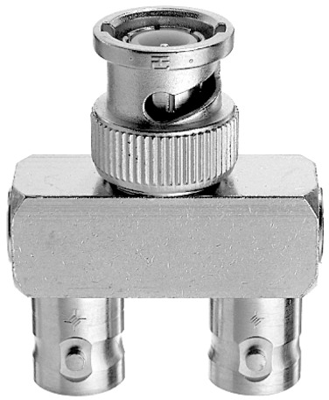

100023601 Telegärtner Coaxial Adapters Image 1

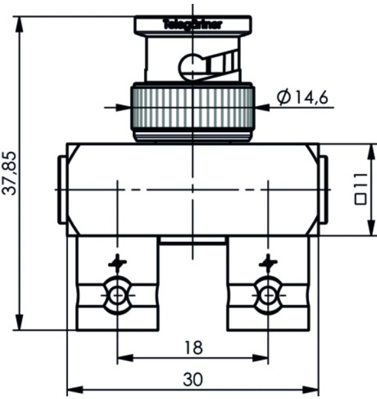

100023601 Telegärtner Coaxial Adapters Image 2
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
T-adapter, 75 Ω, BNC plug to 2 x BNC socket, straight, 100123579
T-adapter, 75 Ω, BNC plug to 2 x BNC socket, straight, 100123579
Order No.: 78F377
Manufacturer: Telegärtner
per pc. 24.3712 € *
*incl. VAT plus shipping costs

Coaxial adapter, J01005A0005, Telegärtner

2x BNC-Jack to BNC-Plug

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.

FEATURES

  • BNC Y-Adapter 75 Ohm
  • Mating life ≥ 500
  • Max. Frequency 4 GHz

Technical Data

  • Design: Y-Shape
  • Impedance: 75 Ω
Technical specifications
Bauform Y-Form
Impedanz 75 Ω
Steckverbinder (Ausgang) 2 x BNC-Buchse
Steckverbinder BNC-Stecker
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
Replacement
