100023650 | Telegärtner

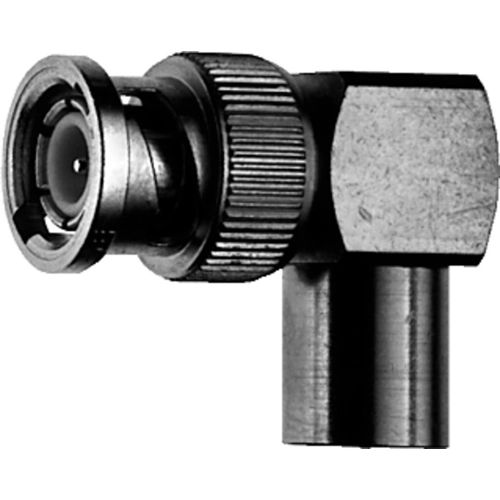

Coaxial adapter, J01008A0059, Telegärtner

BNC-Plug to FME-Plug

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.

FEATURES

• BNC (m)/FME (m)
• Return Loss 33dB/1GHz, 25dB/1.5GHz, 19dB/2GHz
• Max. Frequency 2 GHz
• Mating life ≥ 500

Technical Data

• Design: angled
• Impedance: 50 Ω
