100023654 | Telegärtner

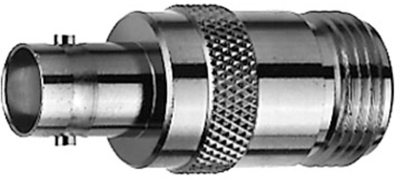

Coaxial adapter, 50 Ω, BNC socket to N socket, straight, 100023654
Unit Price (€ / pc.)
24.3117 € *
Available: 2 pcs.
Leadtime: 1 Week **
Total Price:
24.31 € *
Price list
Quantity
Price per unit*
1 pcs.
24.3117 €
10 pcs.
21.4081 €
50 pcs.
19.9325 €
150 pcs.
19.0638 €
500 pcs.
18.0880 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coaxial adapter, J01008A0088, Telegärtner
BNC-Jack to N-Jack
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
FEATURES
- BNC (f)/N (f)
- Return Loss 34dB/1GHz, 34dB/2GHz, 26dB/4GHz
- Max. Frequency 4 GHz
- Mating life ≥ 500
Technical Data
- Design: straight
- Impedance: 50 Ω
Technical specifications
| Design | straight | |
| Impedance | 50 Ω | |
| Connector (exit) | N socket | |
| Connector | BNC socket |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
