100023659 | Telegärtner

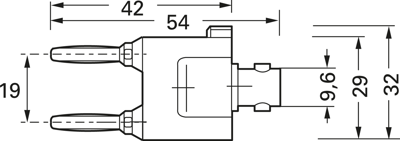

Coaxial adapter, 50 Ω, 2 x 4 mm plug pin to BNC socket, Y-shape, 100023659
Unit Price (€ / pc.)
57.2390 € *
Available: 3 pcs.
Next delivery: 11 pcs. on 2025-04-14
Leadtime: 4 Weeks **
Total Price:
57.24 € *
Price list
Quantity
Price per unit*
1 pcs.
57.2390 €
5 pcs.
52.0387 €
15 pcs.
47.6952 €
50 pcs.
44.0300 €
150 pcs.
40.8884 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coaxial adapter, J01008A0620, Telegärtner
BNC-Jack to 2x 4 mm plug pin
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
FEATURES
- BNC (f)/Banana plug
- Mating life ≥ 500
- Max. Frequency 4 GHz
Technical Data
- Design: Y-Shape
- Impedance: 50 Ω
Technical specifications
| Bauform | Y-Form | |
| Impedanz | 50 Ω | |
| Steckverbinder (Ausgang) | BNC-Buchse | |
| Steckverbinder | 2 x 4 mm Steckerstift |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
