100023665 | Telegärtner

Coaxial adapter, J01008A0628, Telegärtner

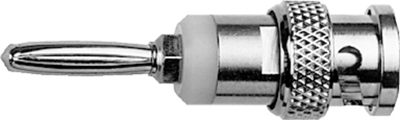

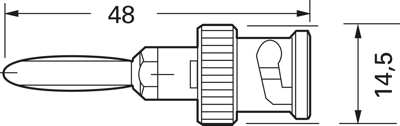

BNC-Plug to 4 mm plug pin

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.

FEATURES

• BNC-Banana plug
• Contact pin diameter 4 mm
• Max. Frequency 4 GHz

Technical Data

• Design: straight
