100023668 | Telegärtner

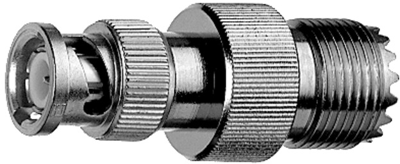

Coaxial adapter, 50 Ω, BNC plug to UHF socket, straight, 100023668
Unit Price (€ / pc.)
34.0102 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
34.01 € *
Price list
Quantity
Price per unit*
5 pcs.
34.0102 €
10 pcs.
30.9162 €
25 pcs.
28.3458 €
50 pcs.
26.1562 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coaxial adapter, J01008A0803, Telegärtner
BNC-Plug to UHF-Jack
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
FEATURES
- BNC (m)/UHF (f)
- Mating life ≥ 500
- Max. Frequency 4 GHz
Technical Data
- Design: straight
- Impedance: 50 Ω
Technical specifications
| Bauform | gerade | |
| Impedanz | 50 Ω | |
| Steckverbinder (Ausgang) | UHF-Buchse | |
| Steckverbinder | BNC-Stecker |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
