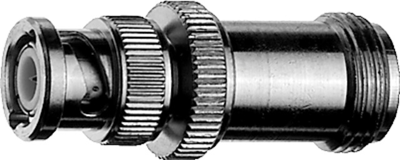

Coaxial adapter, J01008A0824, Telegärtner

BNC-Plug to N-Jack

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.

FEATURES

• BNC (m)/N (f)
• Return Loss 29dB/1GHz, 28dB/2GHz, 22dB/4GHz
• Max. Frequency 4 GHz
• Mating life ≥ 500

Technical Data

• Design: straight
• Impedance: 50 Ω
