100024351 | Telegärtner
Coaxial adapter, 50 Ω, FME plug to UHF plug, straight, 100024351
Unit Price (€ / pc.)
31.2732 € *
Available: 19 pcs.
Leadtime: 1 Week **
Total Price:
31.27 € *
Price list
Quantity
Price per unit*
1 pcs.
31.2732 €
10 pcs.
29.0836 €
25 pcs.
26.7512 €
50 pcs.
24.3474 €
*incl. VAT plus shipping costs
**Subject to prior sale

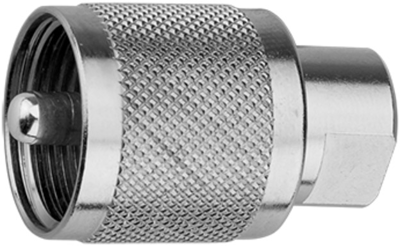

Coaxial adapter, J01043A0000, Telegärtner
UHF-Plug to FME-Plug
The UHF series is a low cost, low frequency connector with a screw coupling. The maximum usable frequency is limited to 200 MHz, as the impedance of the connector is not controlled. Flexible cables up to 11 mm (0.433") in diameter can be used. Soldering and crimping techniques are used for terminating these connectors. Applications for the UHF connectors are for low-frequency communication equipment.
FEATURES
- UHF (m)/FME (m)
- Max. Frequency 200 MHz
Technical Data
- Design: straight
- Impedance: 50 Ω
Technical specifications
| Bauform | gerade | |
| Impedanz | 50 Ω | |
| Steckverbinder (Ausgang) | UHF-Stecker | |
| Steckverbinder | FME-Stecker |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
