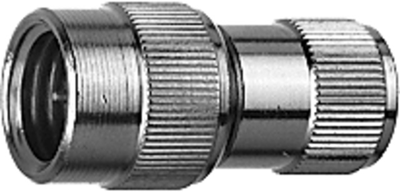

Coaxial adapter, J01048A0000, Telegärtner

Mini-UHF-Plug to FME-Plug

The Mini-UHF series is a miniaturized version of the UHF connector, but has improved electrical performance. The Mini-UHF has threaded coupling and can be used up to a frequency of 2.5 GHz. Unlike the UHF, the Mini-UHF series is impedance controlled at 50 Ω. Connector styles are available for flexible and conformable cables. Solder and crimp techniques are used to terminate this series. Applications for the Mini-UHF series are in the area of mobile radios and mobile communications; especially in vehicles.

FEATURES

• Mini-UHF (m)/FME (m)
• Return Loss 31dB/1GHz, 21dB/2GHz, 19dB/2.5GHz
• Max. Frequency 2 GHz

Technical Data

• Design: straight
• Impedance: 50 Ω
