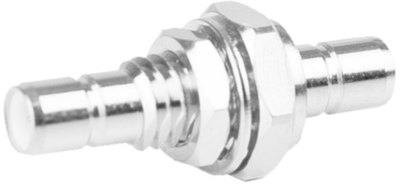

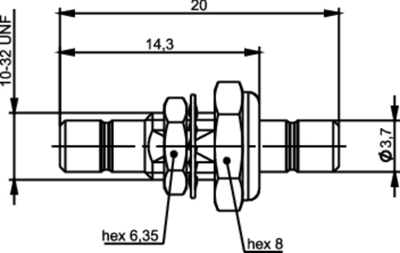

Coaxial adapter, J01162A0031, Telegärtner

SMB-Plug to SMB-Plug

These connector series offer three different coupling mechanisms: SMB has a snap-on coupling allowing quick but secure connection, and is usable up to 4 GHz. SMC has a threaded coupling for vibration proof installation, and is usable up to 10 GHz. SMS has a slide coupling which is suitable for rack and panel systems, and is usable up to 4 GHz. The impedance is controlled at 50 Ω for all types. Connector styles are available for flexible, conformable and semi-rigid cables. Versions of these series connectors are available for mounting to printed circuit boards using both thru-hole soldered and thru-hole press-fit techniques, as well as surface mount technology (SMD). Solder and crimp techniques are used to terminate these series to cables. SMB/SMC/SMS connectors find applications in all types of electronic equipment.

FEATURES

• SMB (m)/SMB (m)
• Return Loss >20 dB/1 GHz, 16.5 dB/3 GHz
• Max. Frequency 4 GHz

Technical Data

• Design: straight
• Impedance: 50 Ω
