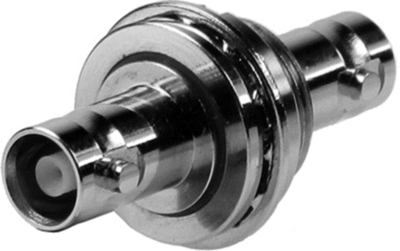

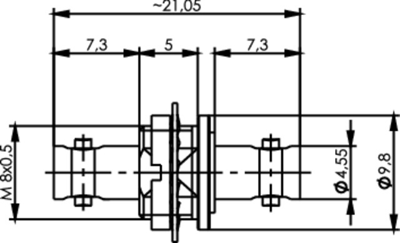

Coaxial adapter, J01293A0001, Telegärtner

Mini-HD-BNC-Jack to Mini-HD-BNC-Jack

This new 75 Ohm connector series comprises miniature connectors with bayonet coupling. These connectors are less than 50% of the size of standard BNC connectors, and so have a packing density 4 times greater than that of standard BNC connectors. The connectors in the Mini HD-BNC series are "true" 75 Ohm connectors, and are, therefore, ideally suited for HDTV or HD-SDI applications up to 4.5 GHz. The mating face of this new series is not standardised. The connectors are compatible for use with HD-BNC connectors from Amphenol.

FEATURES

• Mini-HD-BNC (f)/Mini-HD-BNC (f)
• Mount. dim Z155

Technical Data

• Design: straight
• Impedance: 75 Ω
